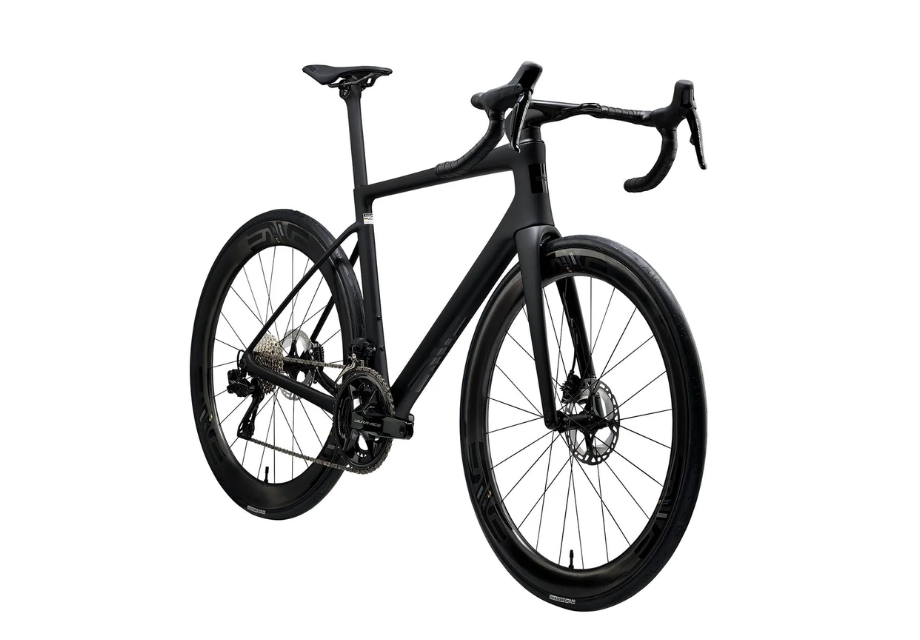

ENVE Melee Frameset - Black

$8,990.00
$8,990.00
$9,999.00
Sold Out

Tax included. Shipping calculated at checkout.

Size | 47

- +
We Ship Specialized Bikes Australia Wide.
Please allow 2 to 4 business days for bikes to be assembled & checked prior to dispatch or pickup.
Need Help? Call us on: 03 9041 1091

Building on ENVE' s foundation of Real-World Fast aero technologies, the Melee has been designed to complement the ENVE SES wheel line and to deliver aero efficiency that is on par with the fastest bikes on the road.

Aero development objectives for the Melee:

  • Versatility — balanced aero efficiency and weight savings
  • Tube shapes complement ENVE SES rim shapes
  • Hidden wires and brake hoses
  • Performance at 32 kph/20 mph and 48 kph/30 mph

The Melee is supplied as a Chassis.

At the foundation of performance are bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry won’t save your ride. You need sound fit and geometry to get the most from your bike’s performance.

Offered in seven sizes with five fork rakes, the Melee has your ideal fit in mind – like no other race bike on the market.

The Chassis includes:

  • Frame - 7 frame sizes available
  • Fork - 5 different fork rakes
  • Headset
  • Handlebar - ENVE SES AR Handlebar - your choice of width
  • Stem - new ENVE integrated carbon Aero Stem - your choice of length
  • Seat post - your choice of 0mm or 20mm offset

***Note: All other parts including Wheels, Saddles, Groupset etc are purchased separately***



Specifications:



Frame Material ENVE M.O.D Carbon
Fork Material ENVE M.O.D Carbon
Target Application Road Race/Performance
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43, 39
Frame Size/Fork Rake 47cm/55, 50cm/51, 52cm/47, 54cm/47,
56cm/43, 58cm/43, 60cm/39
Frame Weight 850g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 25c
Optimal Tire Size 27c-32c
Maximum Listed Tire Clearance 35c
Frame Routing Internal
