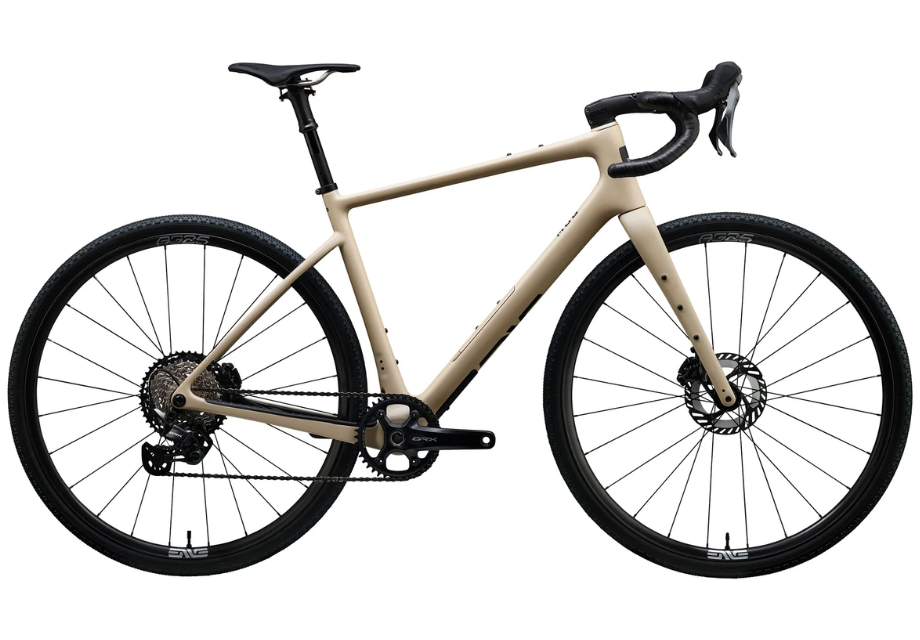

ENVE Mog Frameset - Sand

Regular Price
$9,999.00
Sale Price
$9,999.00
Regular Price
Sold Out
Unit Price
per

Tax included. Shipping calculated at checkout.

Size | 52

- +
We Ship Specialized Bikes Australia Wide.
Please allow 2 to 4 business days for bikes to be assembled & checked prior to dispatch or pickup.
Need Help? Call us on: 03 9041 1091

Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.

Target Application Gravel Racing/Riding/Exploration/Adventure.

Specifications
The MOG checks all the boxes for what a modern gravel bike should be. Versatility through design with an abundance of tire clearance, fitting up to a 700c x 50 mm tire, in addition to in-frame storage with the Cargo Bay’s use of the downtube’s open space. Rack mounts on the fork provide additional options for the weekend bikepacking getaway while not hindering the MOG’s performance in any way.

The Mog is supplied as a Chassis.

At the foundation of performance are bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry won’t save your ride. You need sound fit and geometry to get the most from your bike’s performance.

The Chassis includes:

  • Frame
  • Fork
  • Headset
  • Handlebar - ENVE SES AR Handlebar - your choice of width
  • Stem - new ENVE integrated carbon Aero Stem - your choice of length
  • Seat post - your choice of 0mm or 20mm offset

***Note: All other parts including Wheels, Saddles, Groupset etc are purchased separately***

  • Frame Material:   ENVE M.O.D Carbon, 12×142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
  • Fork Material:   ENVE M.O.D Carbon, 12×100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
  • Frame Size/Fork Rake:   49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
  • Frame Weight:   950g +/- 2% (Size 56, Painted, No Hardware)
  • Headset:   ENVE Integrated IS52/IS52 Internal Drop-In
  • Headset Bearing:   1.5″ IS52 Upper and Lower
  • Seat Post Diameter:   27.2
  • BB Type:   T47 Inboard Bearing
  • Brake Mount:   Flat Mount
  • Brake Rotor Compatibility:   F: 160/180, R: 140/160 (Adapters Required)
  • Front Axle:   12×100 (Total Length: 122, TP:1.5, TL:15)
  • Rear Axle:   12×142 (Total Length: 168, TP:1.0, TL:14)
  • Minimum Tire Size:   700 x 36c
  • Optimal Tire Size:   700 x 40c-44c
  • Maximum Listed Tire Clearance:   700 x 50c
  • Frame Routing:   ENVE IN-Route Internal
  • Water Bottle Capacity:   3
  • Top Tube Mounts:   Yes
  • Fender Mount Compatible:   Yes
  • Wheel Size:   700C (650b Not Recommended)
  • Color: Sand  (Pantone 7528C)
