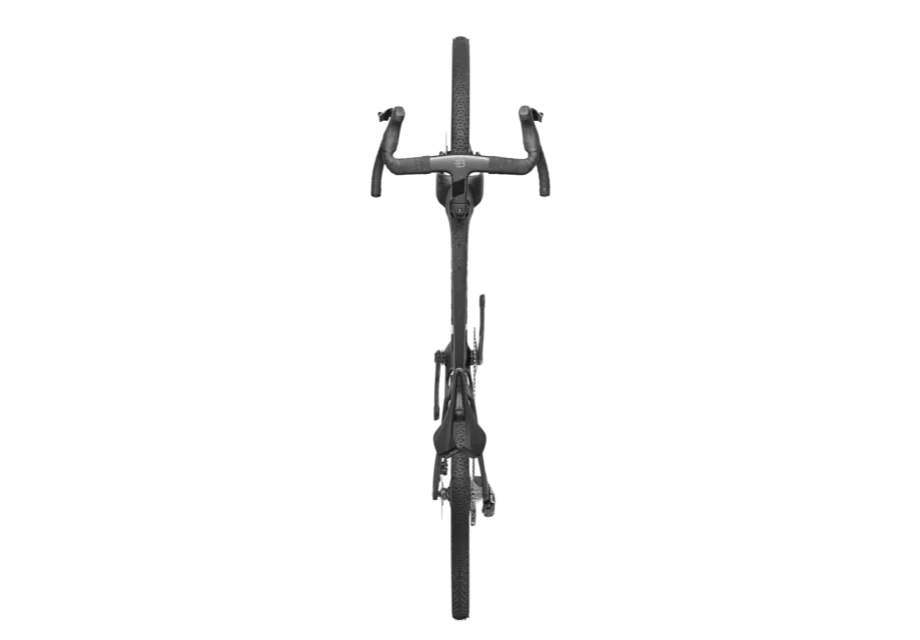

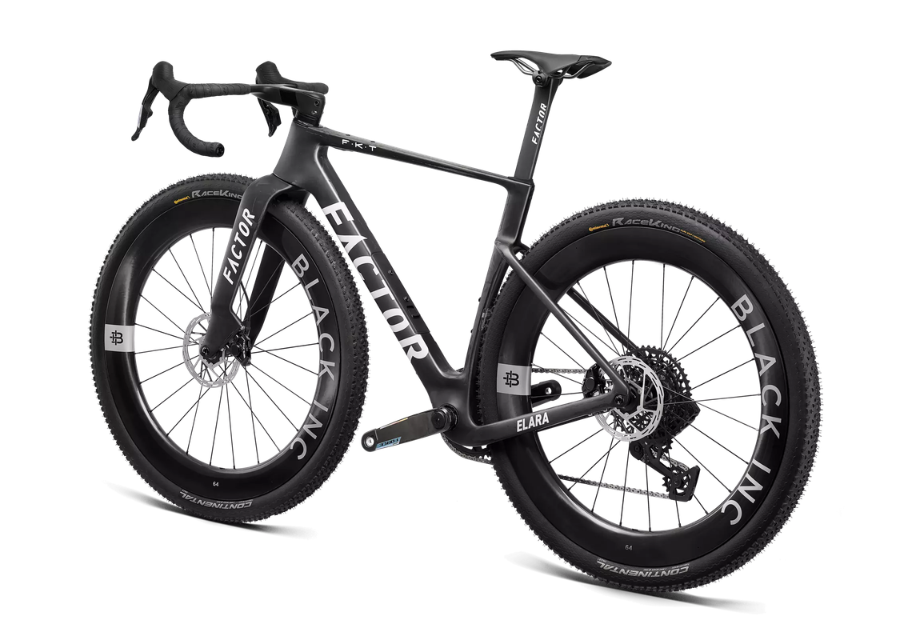

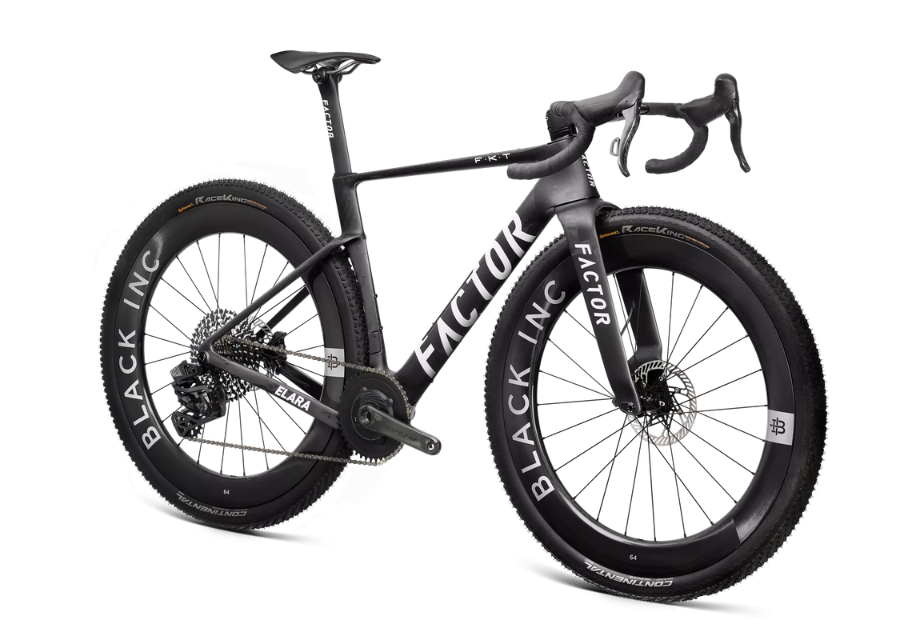

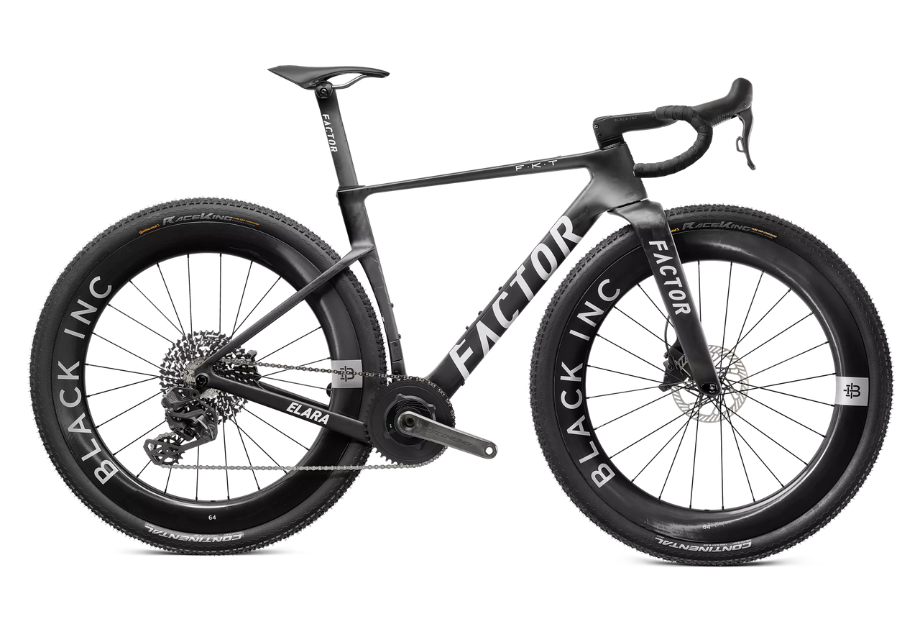

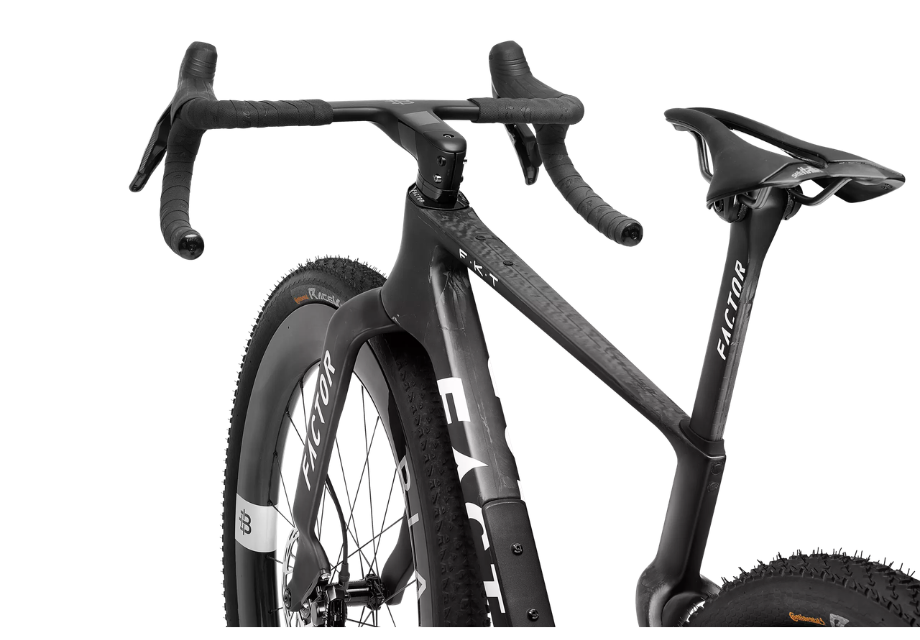

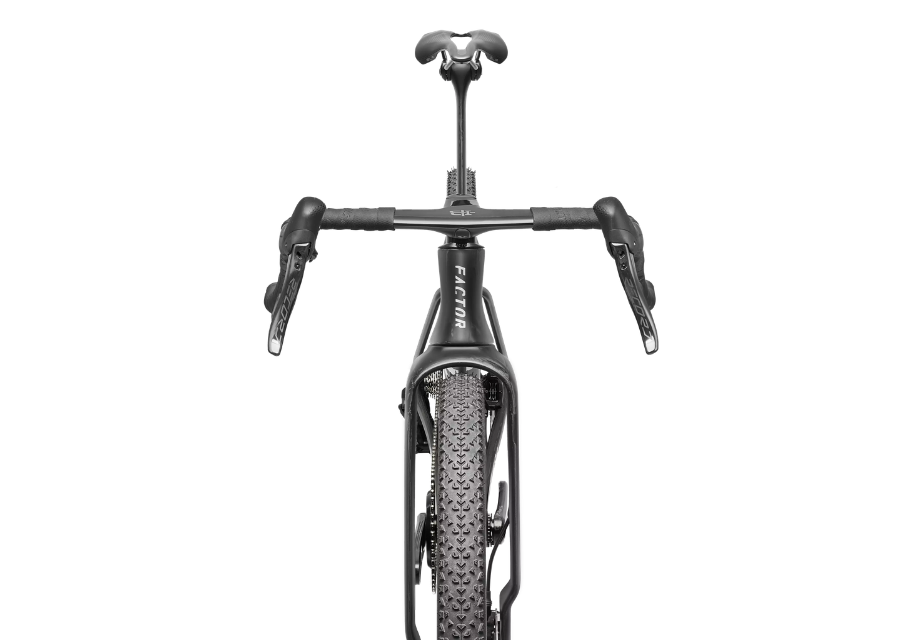

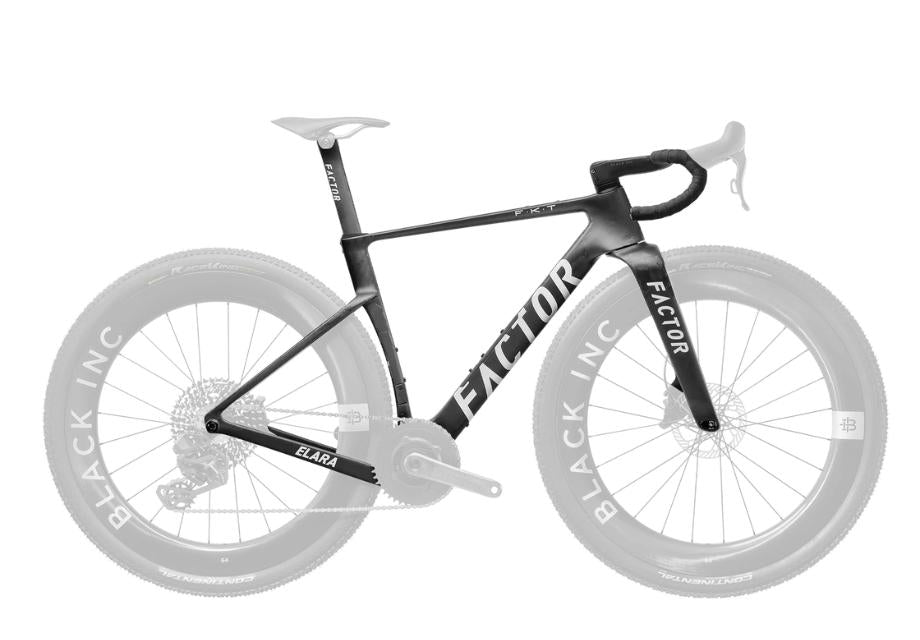

Factor Elara Gravel Premium Frame Package - Matte Carbon
-
Regular Price
-
$10,099.00
-
Sale Price
-
$10,099.00
-
Regular Price
-
$10,099.00
Out of Stock - Call for ETA
-
Unit Price
- per
- Regular Price
- $10,099.00
- Sale Price
- $10,099.00
- Regular Price
- $10,099.00
- Unit Price
- per
Free Retul Muve Bike Sizing Session with All Factor Bike Sales.
Drivetrain Compatibility
1× and 2× mechanical and electronic (SRAM, Shimano, Campagnolo)
Maintains 1× compatibility with full 57 mm clearance, an industry first for true race geometry.
With 2x fitted the rear tyre clearance is reduced to 47 mm.
Fork
Full carbon, Factor-engineered.
Standard 1 1/2"–1 1/2" tapered steerer.
Flat mount disc brakes, 12×100 mm axle.
Bottom Bracket
T47A internal threaded.
Rear Axle
12×142 mm thru-axle.
Supports UDH
Seatpost
Factor aero-profile carbon seatpost with integrated clamp (available in 0 mm and 20mm offset options).
Aerodynamics
CFD-validated for 45–50 mm gravel race tyres.
Wind-tunnel testing confirms
5–8% lower drag coefficient vs OSTRO Gravel (with 47 mm tyre)
Comparable aero efficiency to modern aero road frames at equivalent yaw angles.
Lay-Up and Materials
Tuned for torsional stiffness, impact control, and directional stability.
Specific fibre schedules for BB junction, downtube, and fork crown.
Factory weight target: sub-1100g (Size M, raw frame).
Specs
| Frame | Toray®, Nippon Graphite® Pan-Based Fiber |
| Fork | ELARA Wide Stance Fork |
| Seatpost | 0 and 20mm setback available |
| Barstem | Black Inc Integrated Barstem Reach 80mm, drop 114mm. Multiple stem lengths and bar widths available |
| Headset | 1.5″ bearings |
| Head Tube Diameter | 1.5″ upper and lower |
| Saddle Rail Clamps | 7x7 and 7x9 |
| Bottom Bracket | CeramicSpeed T47A Aluminium cups / CeramicSpeed bearings available for DUB and 24mm. |
| Cable Routing | Internal |
| Compatible Components | Electronic |

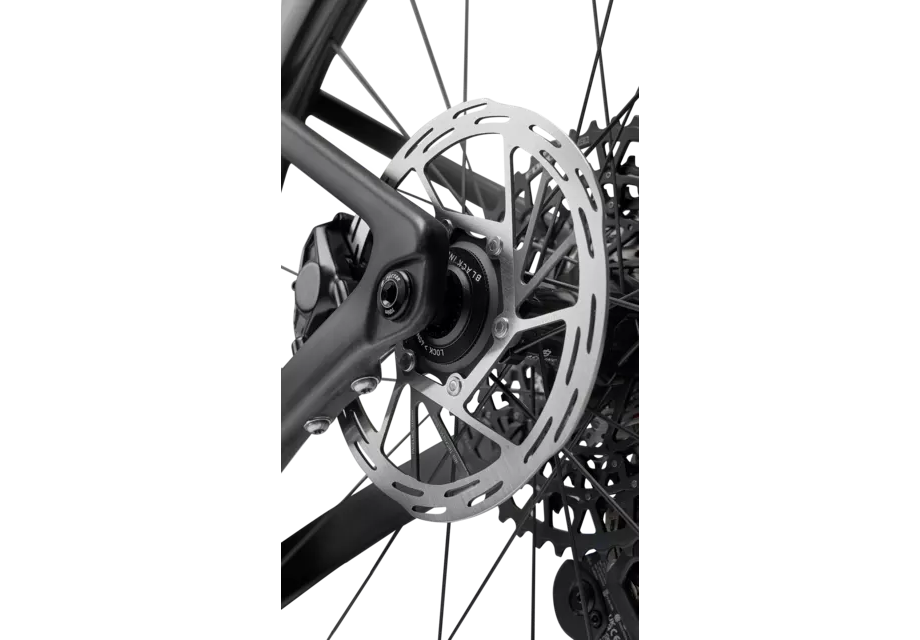

| Brake type | Disc |
| Max Rotor Size | 160mm front & rear |
| Max Chainring | 52-tooth |
| Front Axle | 12 x 100mm thru-axle |
| Rear Axle | 12 x 142mm thru-axle |
| Wheel Size | 700c |
| Max Tire Clearance | 57mm measured |
| Included Accessories | Downtube storage bag |
| Manufacturer Warranty | Limited Lifetime Warranty |

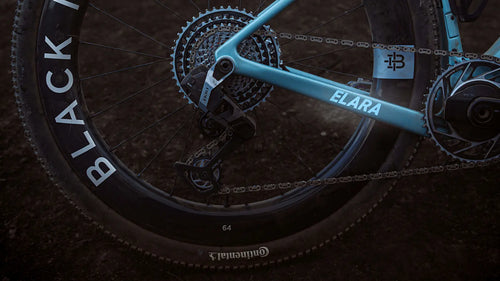

Adaptable Design
The Factor Elara's race-focused design that fits 2× drivetrains. Allows the Elara to fit your riding requirements.
Make it Yours
Every Factor purchased at the Cycling Fix comes with a free sizing session to make your Factor Elara yours.
Data-validated aerodynamics
The Factor Elara takes aero designs from the proven Ostro VAM and Factor One and blends them together to make Aerodynamics never before seen in Gravel bikes.
Extremely Fast, but versatile.

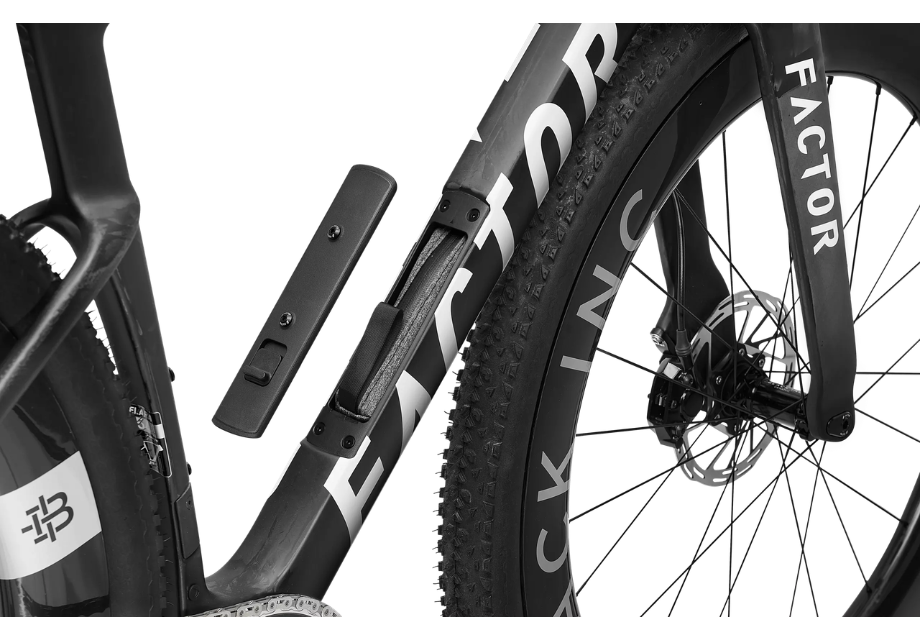

Not only is the Factor Elara fast and aero, it also comes with In-frame storage to ensure your always prepared.
Enough clearance to compete with an MTB
The Factor Sarana has clearance for 57 mm (29 × 2.2-inch) tyres allowing you to ride even the most coarse gravel.
