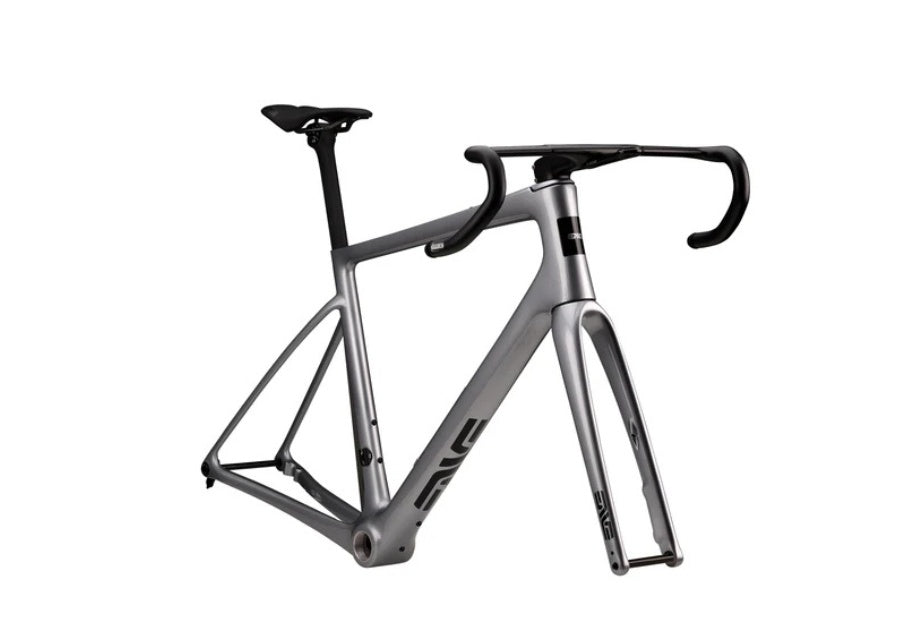

2026 ENVE Fray Frameset
-
Regular Price
-
$7,999.00
-
Sale Price
-
$7,999.00
-
Regular Price
-
$7,999.00
Out of Stock - Call for ETA
-
Unit Price
- per
- Regular Price
- $7,999.00
- Sale Price
- $7,999.00
- Regular Price
- $7,999.00
- Unit Price
- per
Rent with Studio19 today!
Studio19 Rentals offers something that no one else does. The chance to try out high-quality gear and decide if it’s the perfect fit for you, without long-term contracts or the rigid terms often associated with other financing options. Choose 6 or 12 or 36 month minimum terms.*
Contact us Here to Apply
*Minimum 12 or 36 month term on bike purchases greater than $10,000
All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.
An ENVE frameset is the canvas upon which you can build your dream bike. The Fray is sold as a frameset only which includes the frame, fork, headset. If there are questions regarding your fit, please contact us and/or use the ENVE Best-Fit Calculator to reach your ideal frameset configuration. From there, pair it with your drivetrain of choice and your favorite compatible ENVE Handlebar, Stem, Seatpost and SES or Foundation wheelset.
Product Details
- Real-World Fast™ aero optimization
- Geometry optimized for 31mm - 35mm tires
- Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
- ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
- Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
- Aero tube shapes & design that complements SES rim shapes
- Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
- Frame Weight 900g (Size 56cm Painted, No Hardware)
The Fray is supplied as a Frame Only
At the foundation of performance are bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry won’t save your ride. You need sound fit and geometry to get the most from your bike’s performance.
The Frameset includes:
- Frame
- Fork
- Headset
*Note: All other parts including Handlebar, Stem, Seat post, Wheels, Saddles, Groupset etc are purchased separately
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible |
| Target Application | All Road / Endurance / Mixed Surface / Sportif / Fondo |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43 |
| Frame Size/Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, |
| 56cm/47, 58cm/47, 60cm/43 | |
| Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 27mm |
| Optimal Tire Size | 31mm - 35mm |
| Maximum Listed Tire Clearance 1x | 40mm |
| Maximum Listed Tire Clearance 2x | 38mm |
| In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each) |
| Frame Routing | Internal |
| Waterbottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Compatible | Yes |
| Wheel Size | 700c |
