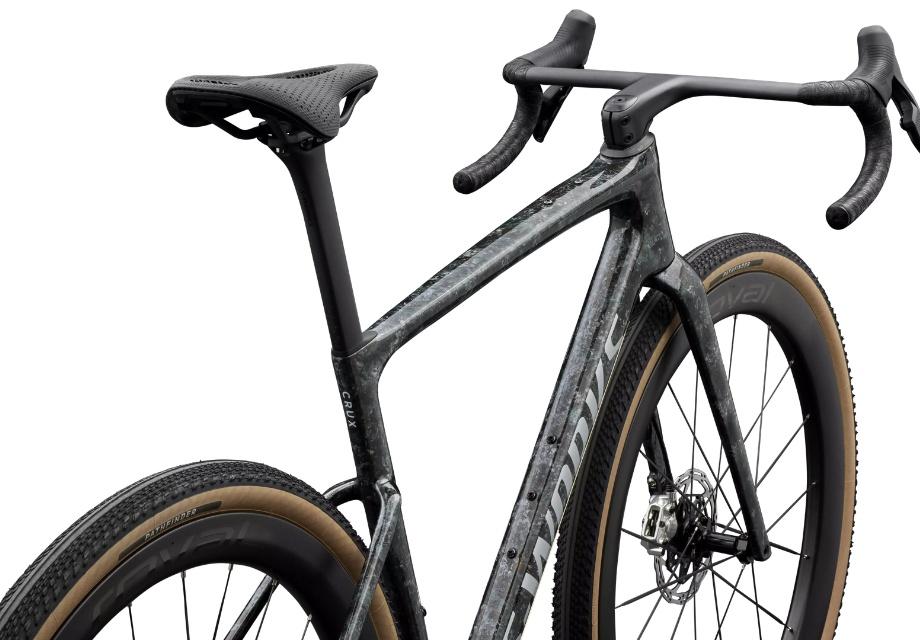

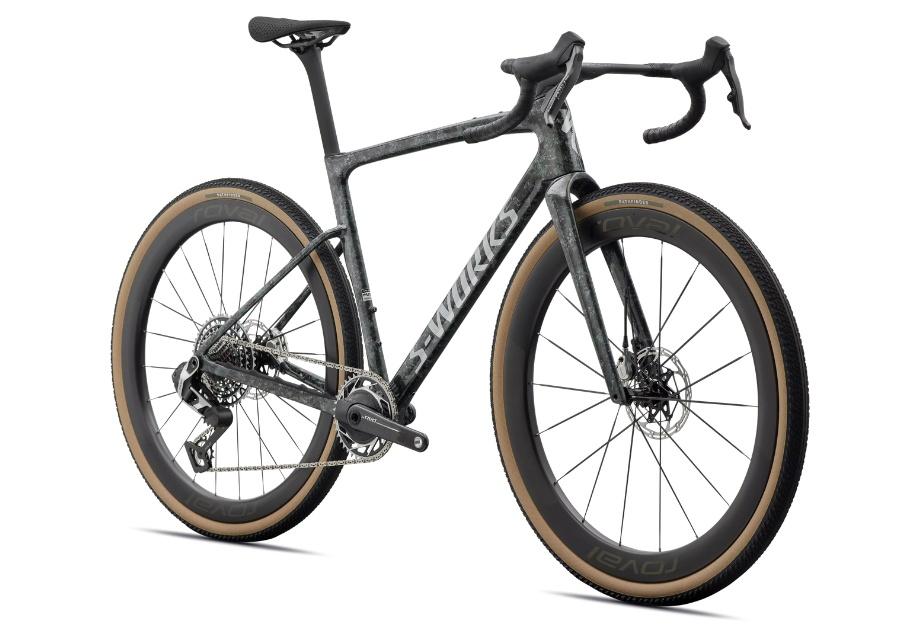

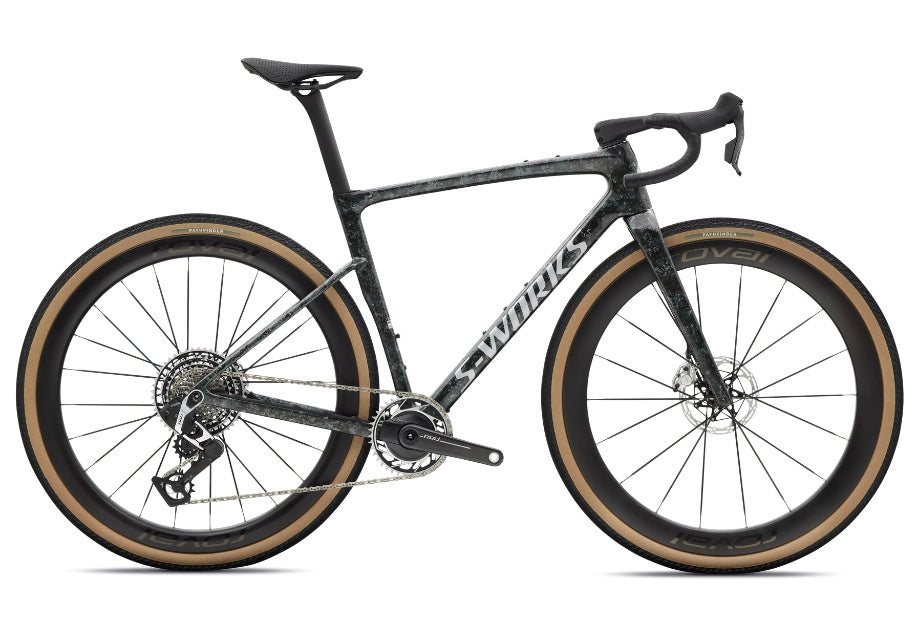

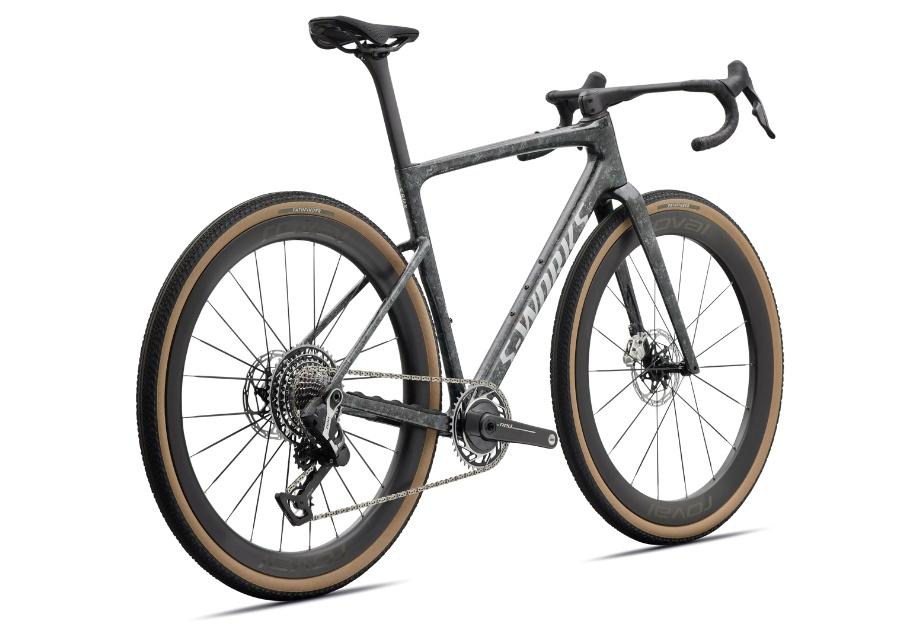

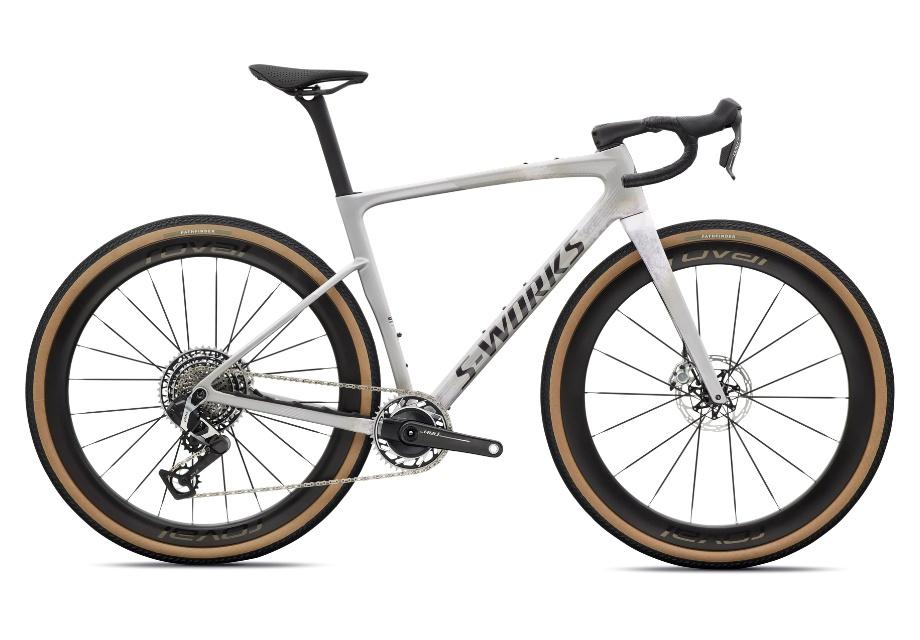

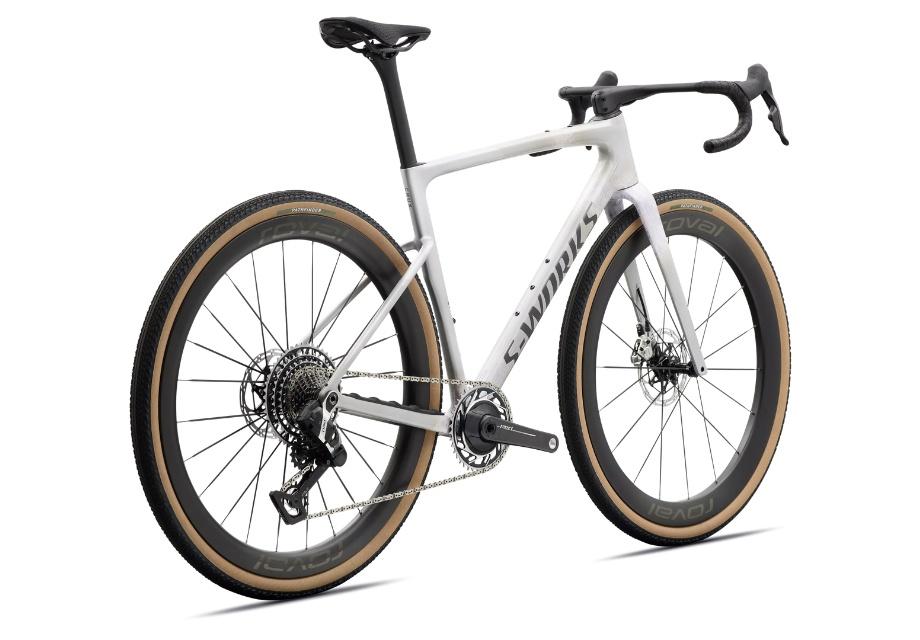

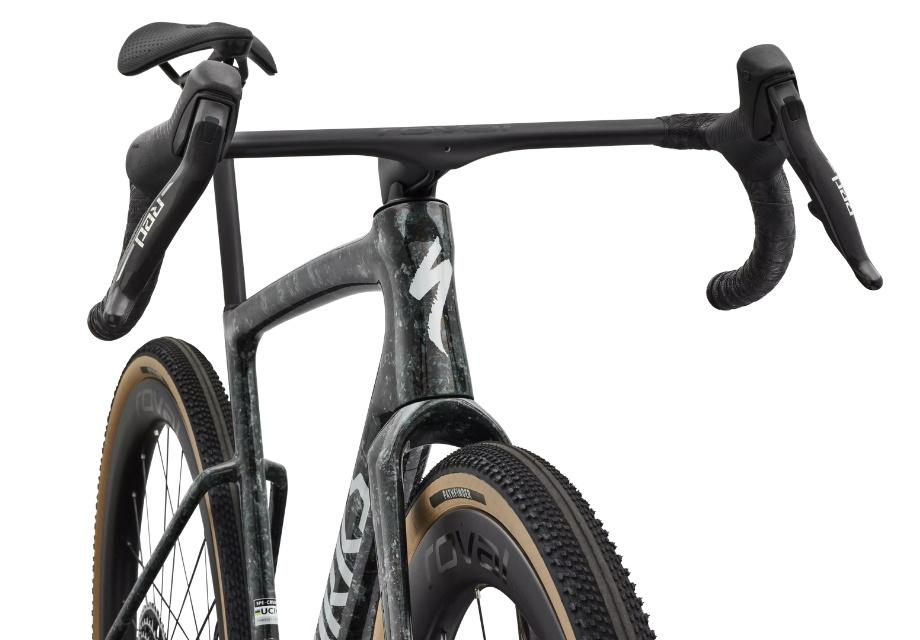

S-Works Crux 5 - SRAM Red XPLR
-
Regular Price
-
$19,500.00
-
Sale Price
-
$19,500.00
-
Regular Price
-
$19,500.00
Out of Stock - Call for ETA
-
Unit Price
- per
- Regular Price
- $19,500.00
- Sale Price
- $19,500.00
- Regular Price
- $19,500.00
- Unit Price
- per
Eat My Dust
The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.
At a Glance
Use
Gravel Racing
Frame
FACT 12r Carbon: 789 grams
Wheels
Roval Terra Aero CLX
Cockpit
Roval Terra Integrated
Drivetrain
SRAM RED XPLR
Weight
7.1 kg
Technical Specifications
- Frame
- S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Fork
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
- Front Brake
- SRAM RED E1, hydraulic disc
- Rear Brake
- SRAM RED E1, hydraulic disc
- Bottom Bracket
- Ceramic Speed BB Alpha, BSA DUB
- Shift Levers
- SRAM RED AXS E1, hydraulic disc
- Rear Derailleur
- SRAM RED AXS XPLR E1, 13-speed
- Chain
- SRAM RED E1
- Cassette
- SRAM RED XPLR E1, 13-speed, 10-46t
- Crankset
- SRAM RED XPLR E1, Quarq power meter, 40t
- Inner Tubes
- 700x32-50mm, 60mm Presta valve
- Front Tire
- Pathfinder 700x45, Tubeless Ready
- Rear Tire
- Pathfinder 700x45, Tubeless Ready
- Front Wheel
- Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces
- Rear Wheel
- Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces
- SeatPost
- S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp
- Handlebars
- Roval Terra Cockpit, Integrated Bar/Stem
- Saddle
- S-Works Power with Mirror
- Tape
- Supacaz Super Sticky Kush
- Seat Binder
- Integrated Wedge
- Weight Size
- 56
- Weight
- 7.1 kg (15 lb, 10.4 oz)
The Get Up and Go Bike
No need to commute to the MTB park or get up early to avoid traffic on your road bike. The Crux 5 gravel bike is your anytime, anywhere bike.
All new Aero Frame Design
The new Crux 5 puts itself in league with the Tarmac. Not just because it handles dirt like a Tarmac handles pavement. But the new Aero Frame design means you'll be faster than ever with 15W saved.
Lightweight Powerhouse
The new S-Works Crux 5 weighs in at only 7.1 kg. The S-Level, Expert and Comp models set their own new levels.

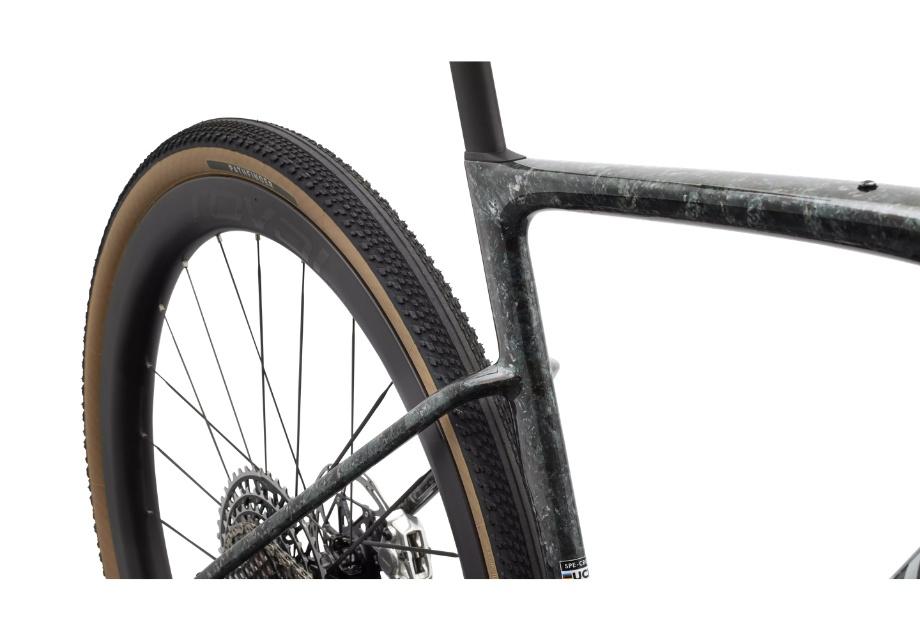

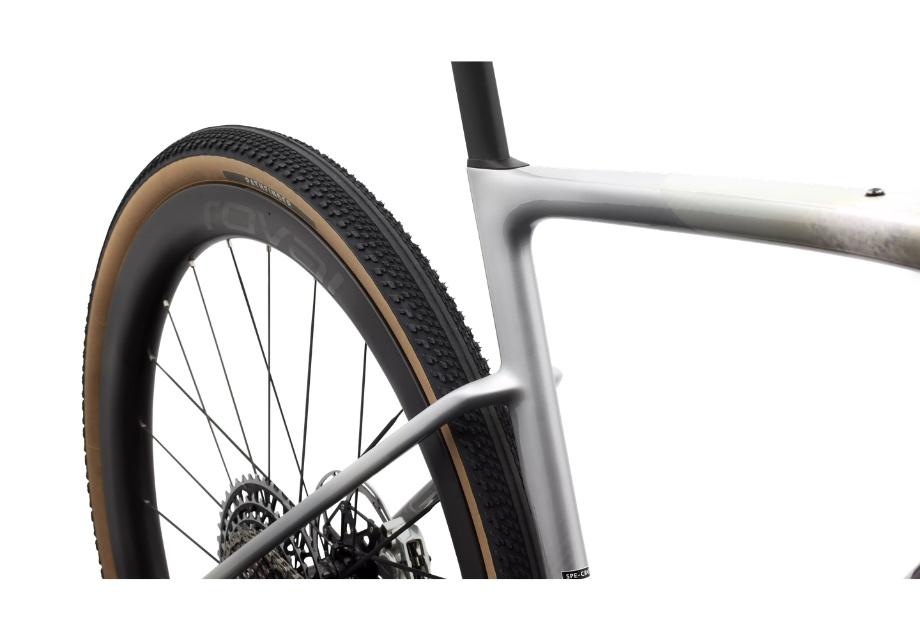

Enough tyre clearance to put an MTB to shame.
With 55mm of tyre clearance, the new Crux 5 is immensely capable for even the most technical gravel routes.
