ENVE Melee Frameset - Damascus
-
Regular Price
-
$5,990.00
-
Sale Price
-
$5,990.00
-
Regular Price
-
$9,999.00
Out of Stock - Call for ETA
-
Unit Price
- per
- Regular Price
- $5,990.00
- Sale Price
- $5,990.00
- Regular Price
- $9,999.00
- Unit Price
- per
Rent with Studio19 today!
Studio19 Rentals offers something that no one else does. The chance to try out high-quality gear and decide if it’s the perfect fit for you, without long-term contracts or the rigid terms often associated with other financing options. Choose 6 or 12 or 36 month minimum terms.*
Contact us Here to Apply
*Minimum 12 or 36 month term on bike purchases greater than $10,000

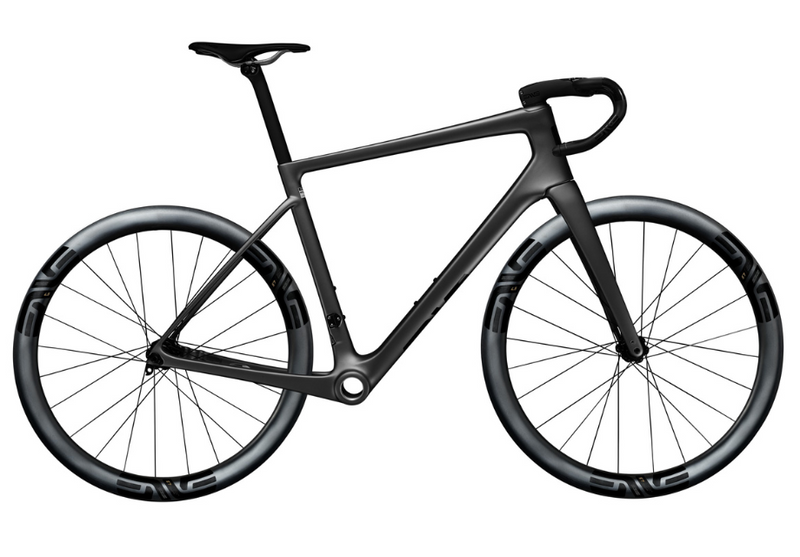

Building on ENVE' s foundation of Real-World Fast aero technologies, the Melee has been designed to complement the ENVE SES wheel line and to deliver aero efficiency that is on par with the fastest bikes on the road.
Aero development objectives for the Melee:
- Versatility — balanced aero efficiency and weight savings
- Tube shapes complement ENVE SES rim shapes
- Hidden wires and brake hoses
- Performance at 32 kph/20 mph and 48 kph/30 mph

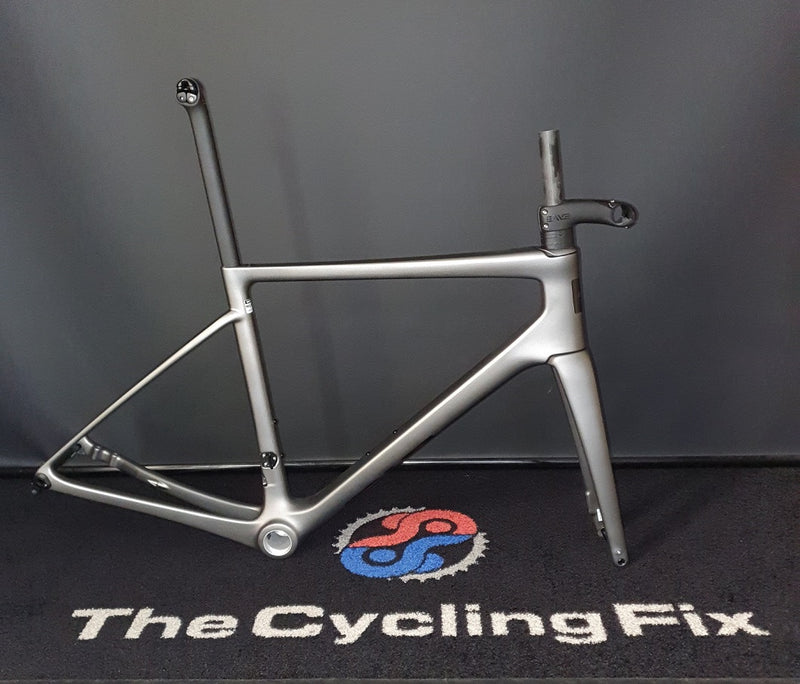

The Melee is supplied as a Frame
At the foundation of performance are bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry won’t save your ride. You need sound fit and geometry to get the most from your bike’s performance.
Offered in seven sizes with five fork rakes, the Melee has your ideal fit in mind – like no other race bike on the market.
The Frame includes:
- Frame - 7 frame sizes available
- Fork - 5 different fork rakes
- Headset
***Note: All other parts including Stem, Seatpost, Handlebar, Wheels, Saddles, Groupset etc are purchased separately***
Specifications:
Frame Material | ENVE M.O.D Carbon |
Fork Material | ENVE M.O.D Carbon |
Target Application | Road Race/Performance |
Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
Fork Rake | 55, 51, 47, 43, 39 |
Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 |
Frame Weight | 850g +/- 2% (Size 56, Painted, No Hardware) |
Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
Headset Bearing | 1.5″ IS52 Upper and Lower |
Seat Post Diameter | ENVE Aero |
BB Type | T47 Inboard Bearing |
Brake Mount | Flat Mount |
Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |
Minimum Tire Size | 25c |
Optimal Tire Size | 27c-32c |
Maximum Listed Tire Clearance | 35c |
Frame Routing | Internal |
